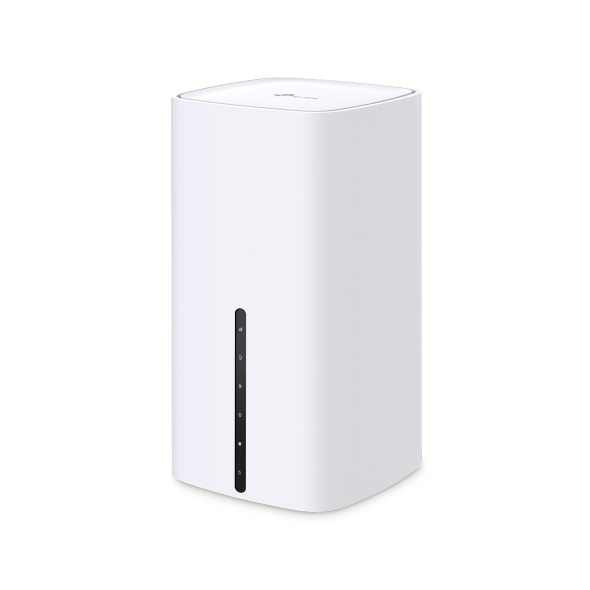

TP-LINK Archer NX200 Router 5G AX1800 Wi-Fi Gigabit Băng Tần Kép
Tận Hưởng Mạng 5G
Tốc Độ Cao Mọi Nơi
Router 5G AX1800 Wi-Fi Gigabit Băng Tần Kép
| Giao diện | 1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface |
|---|---|
| Nút | WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button |
| Bộ cấp nguồn bên ngoài (EU) | Power Adapter: Input Power 100-240v~50/60 Hz 0.6A Output parameter 12VDC 2A |
| Kích thước ( R x D x C ) | 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm) |
| Ăng ten | 8 × 5G/LTE Internal Antennas 2 × Wi-Fi Internal Antennas |
| Chuẩn Wi-Fi | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
|---|---|
| Băng tần | 2.4 GHz and 5 GHz |
| Tốc độ tín hiệu | 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| Reception Sensitivity | 5GHz： 11a 54M：-80 dBm 11ax HE20：-68 dBm 11ax HE40：-65 dBm 11ax HE80：-62 dBm 11ac VHT20：-76 dBm 11ac VHT40：-72 dBm 11ac VHT80：-68 dBm 11n HT20：-79 dBm 11n HT40：-75 dBm 2.4GHz 11g 54M：-78 dBm 11ax HE20：-65 dBm 11ax HE40：-62 dBm 11ac VHT20：-73 dBm 11ac VHT40：-68 dBm 11n HT20：-75 dBm 11n HT40：-72 dBm |
| Tính năng Wi-Fi | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Bảo mật Wi-Fi | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Công suất truyền tải | <23dBm (5.15GHz~5.35GHz) <30dBm (5.47GHz~5.71GHz) <20dBm (2.4GHz) |
| Dạng mạng | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz) FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz) TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| Chất lượng dịch vụ | Prioritizes network traffic by device or application |
|---|---|
| Bảo mật | DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control |
| Dạng WAN | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Quản lý | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN | PPTP VPN, IPSec VPN , OpenVPN |
| Kiểm soát truy cập | Parental Control, Local Management Control |
| Bảo mật tường lửa | DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding |
| Giao thức | IPv4, IPv6 |
| Mạng khách | 2.4 GHz Guest Network x 1 5 GHz Guest Network x 1 |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IPv6 DHCP Server DNS App management |
|---|---|
| Chứng chỉ | CE, RoHS |
|---|---|
| Sản phẩm bao gồm | 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card |
| Môi trường | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
